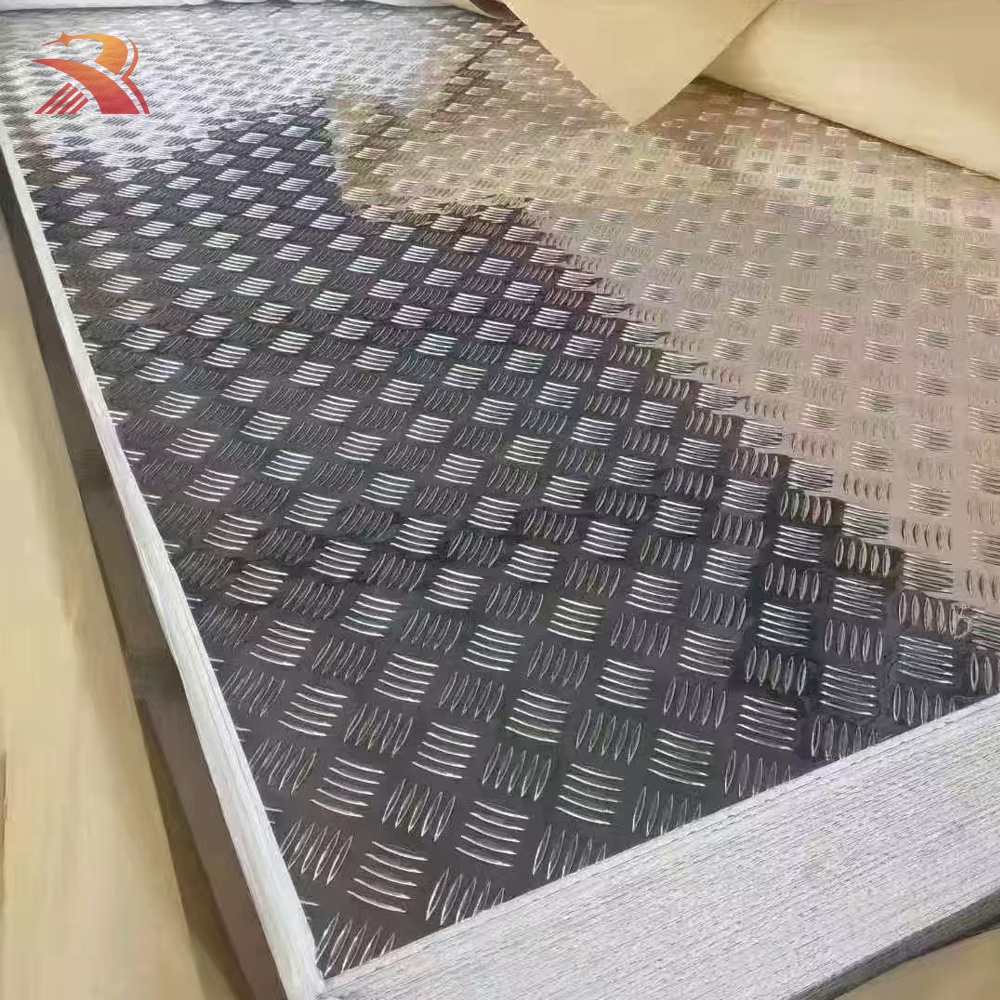

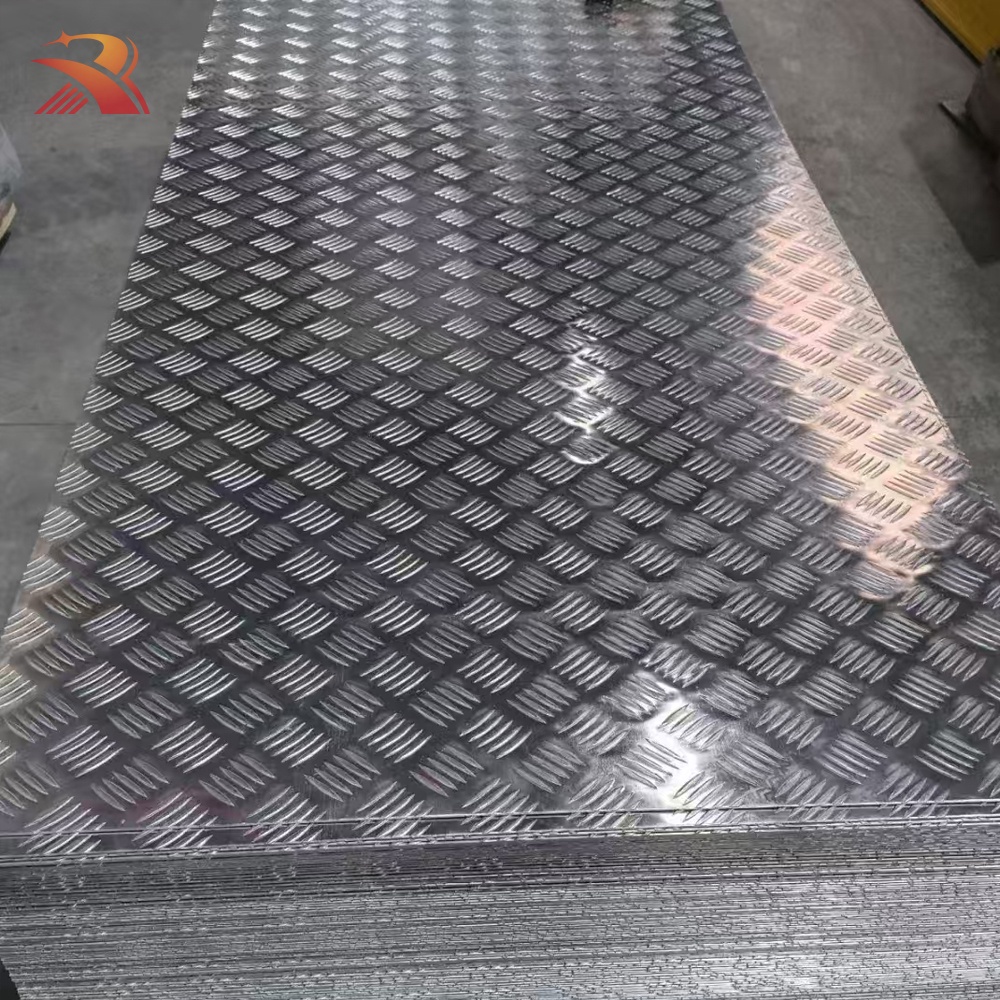

5005 Aluminum Checkered Plate

Name: 5005 Aluminum Checkered Plate
SKU: 0

Aluminum patterned plate is an aluminum alloy sheet with anti slip and corrosion resistance characteristics, with various patterned patterns on the surface, suitable for outdoor and other places that require anti slip properties.

Phone ：+86 18888888888

WhatsApp : +86 18888888888

Email : admin@admin.com

Contact Us

Product Description

Products	Aluminum Checkered Plate
Alloy State	HO, H12,H14,H18,H22,H24,H32,H111,H112,H114, T6 etc.
Thickness	1.2mm-100mm
Width	600mm-1650mm
Rolling Material	DC & CC
Grade	1Series: 1050,1060,1070,1100 etc. 2Series: 2A06,2A10,2A12,2A16,2014,2017,2024,2124,2224,2524 ect. 3Series: 3003,3004,3005,3A21,3105 etc. 4Series: 4032,4043,4047 etc. 5Series: 5052,5754,5083, 5086, 5056,5652, 5154, 5254, 5454 etc. 6Series: 6061,6062,6083 ect. 7Series: 7A01,7A04,7005,7050,7075 etc. 8Series: 8011,8079 etc.
Pattern	Big 5 bar pattern, Small brighten 5 bar, Diamond plate, 2 bar, Small 3 bar, etc.
Surface	Embossed Brighten Surface
Standard	GB/T, ASTM, EN
Certificates	ISO, SGS
MOQ	5 MT-8MT for Customized Production of each size, excluding stock
Packaging	Paper-interleaf each sheet+Water-proof Film+Wooden Pallets
Origin	China
Delivery	15-20 days for CC route; 20-25 days for DC route production
Loading Port	Any port of China, Tianjin & Qingdao in priority
Our Advantage	No oil stain, no scratches, quite flatness; High Brightness; Plump and Uniform Pattern
Bar Thickness	Bottom Thickness	Bar Thickness
	1.2 mm-1.4 mm	0.4 mm-0.6 mm
	1.4 mm-1.9 mm	0.8 mm-1.0 mm
	1.9 mm-3.5 mm	1.0 mm-1.2 mm
	3.5mm-8.0 mm	1.2mm and up

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Other		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn		Ti	Single	Total	Al
1060	0.25	0.35	0.05	0.03	0.03	_	_	0.05	V:0.05	0.03	0.03	_	99.6
1050	0.25	0.4	0.05	0.05	0.05	_	_	0.05	V:0.05	0.03	0.03	_	99.5
1100	Si+Fe:0.95		0.05~0.40	0.05	_	_	_	0.1	_	_	0.05	0.15	99
1200	Si+Fe:1.00		0.05	0.05		_	_	0.1	_	0.05	0.05	0.15	99
3003	0.6	0.7	0.05~0.20	1.0~1.5	_	_	_	0.1		_	0.05	0.15	R
3004	0.3	0.7	0.25	1.0~1.5	0.8~1.3	_	_	0.25		_	0.05	0.15	R
3005	0.6	0.7	0.3	1.0~1.5	0.20~0.6	0.1	_	0.25		0.1	0.05	0.15	R
3105	0.6	0.7	0.3	0.30~0.8	0.20~0.8	0.2	_	0.4		0.1	0.05	0.15	R
5005	0.3	0.7	0.2	0.2	0.50~1.1	0.1	_	0.25	_	_	0.05	0.15	R
5052	0.25	0.4	0.1	0.1	2.2~2.8	0.15~0.35	_	0.1	_	_	0.05	0.15	R
5083	0.4	0.4	0.1	0.40~1.0	4.0~4.9	0.05~0.25	_	0.25	_	0.15	0.05	0.15	R
5086	0.4	0.5	0.1	0.20~0.7	3.5~4.5	0.05~0.25	_	0.25	_	0.15	0.05	0.15	R

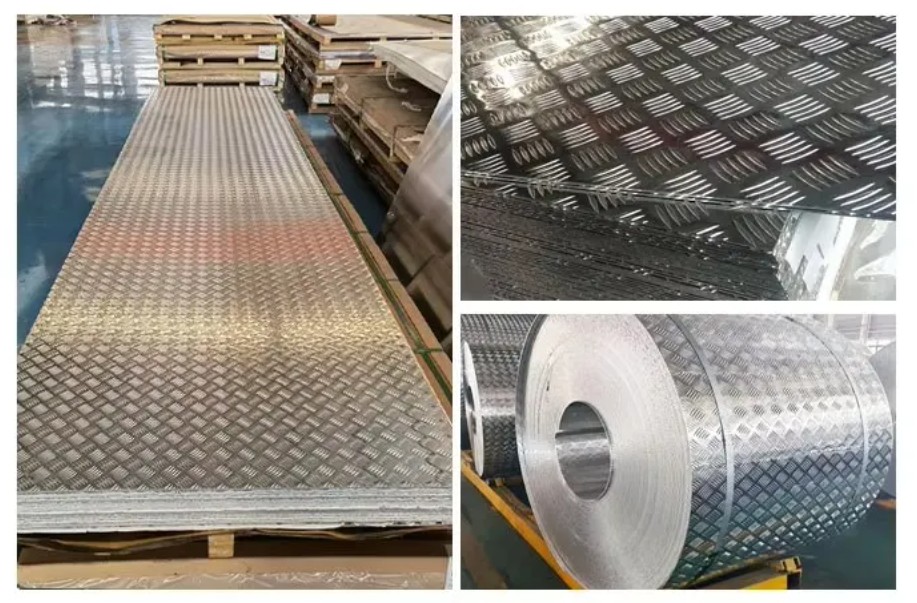

Product Display

Factory Display

FAQ

1.What kind of customer service do you provide?

We provide comprehensive customer service, including basic design, procurement of supporting facilities, and options for dispatching installation guides.

2.What are the customer evaluations of your company?

We are proud to consistently receive five-star reviews from our customers, which demonstrates our commitment to quality and service.

3.What is your quality inspection process like?

Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished products, every stage is carefully inspected to ensure excellent quality.

4.Do you accept container loading inspection?

Welcome to dispatch inspectors, not only for container loading, but also at any time during production.

5.What is the delivery time?

The delivery time depends on the quantity of orders. Usually, the delivery time to the nearest port in China is 15-30 days after receiving the deposit.
